Silicone wire cable insulated strands 0.6/1 kV -60~200℃

Serial Code : A0610010 Product Code : Silicone wire
DetailsTechnical dataTechnical dataArticle tableCertifications and standardsPacking details

Applications:

These 0.6/1 kV insulated conductors are designed for use in a variety of demanding applications, including:

  • Switchboards and distribution panels
  • Industrial furnaces
  • Textile machinery
  • Railway systems and rolling stock
  • Battery systems and energy storage connections

Their robust insulation and rated voltage support reliable, safe performance in both power distribution and specialized industrial environments.



Key Properties:

Halogen‑Free, High‑Performance Cable – PFAS‑Free

  • Halogen‑Free – Eliminates toxic and corrosive fumes in case of fire

  • Heat Resistant – Maintains performance at elevated operating temperatures

  • Flexible at Low Temperatures – Remains pliable and easy to install in cold environments

  • PFAS‑Free – Manufactured without per‑ and polyfluoroalkyl substances, supporting environmental and regulatory compliance

Ideal for applications requiring clean combustion, thermal durability, installation versatility, and modern material standards—such as industrial control systems, public infrastructure, and cold‑climate installations.

Conductor material

Tinned Copper (according to DIN EN 60228)

Conductor design

IEC 60228 class 6

Core identification

Numbers

Colors

Shielded

No

Outer jacket

Silicone

Outer jacket color

Black RAL9005

Green RAL6018

Grey RAL7001

Orange RAL2003

White RAL9003

Product type

Single conductor cable

Application area

Fixed Installation

Nominal voltage

<0.5mm²:U0/U 300/300V

0.5mm²-4.0mm²:U0/U 300/500V

≥4.0mm²:U0/U 450/750V

Test voltage

<0.5mm²:1500V

0.5mm²-4.0mm²:2000V

≥4.0mm²:2500V

Temperature, fixed

-60°C to +200°C (according to DIN EN 50305)

Temperature, flexible

-5°C to +70°C (according to DIN EN 50305)

Min. bend radius, fixed

6 x OD

Flame retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

Halogenfree

According to VDE 0472-815

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

NFPA

According to NFPA 79-2018

Oil resistance

According to DIN EN 60811-2-1

PTFE-free

The design of these products does not contain PTFE

PWIS-free

According to VDMA 24364-B2-L

REACH

According to (EC) No. 1907/2006 (REACH)

UL certification

UL e-file number: E497459

cUL certification

cUL e-file number: E497459

Item no. Cable type Nominal cross
section

Conductor details:

Tinned copper

Outer-ø ± 10% Copper figure
AY-DA0600079 Silicone Single Conductor 2AWG 7000*0.08 12.5 mm 314.05 kg/km
AY-W0600012 Silicone Single Conductor 3AWG 7000*0.08 12.5 mm 314.05 kg/km
AY-W0600009 Silicone Single Conductor 4AWG 5000*0.08 10.5 mm 224.32 kg/km
AY-DA0600125 Silicone Single Conductor 5AWG 4000*0.08 9.5 mm 179.46 kg/km
AY-A0610025 Silicone Single Conductor 6AWG 3200*0.08 8.5 mm 143.57 kg/km
AY-DA0600095 Silicone Single Conductor 7AWG 2400*0.08 7.2 mm 107.67 kg/km
AY-A0610023 Silicone Single Conductor 8AWG 1650*0.08 6.5 mm 74.03 kg/km
AY-W0600013 Silicone Single Conductor 9AWG 1300*0.08 5.8 mm 58.32 kg/km
AY-A0610021 Silicone Single Conductor 10AWG 1050*0.08 5.5 mm 47.11 kg/km
AY-A0610019 Silicone Single Conductor 12AWG 680*0.08 4.5 mm 30.51 kg/km
AY-A0600060 Silicone Single Conductor 13AWG 500*0.08 4 mm 22.43 kg/km
AY-A0610017 Silicone Single Conductor 14AWG 400*0.08 3.5 mm 17.95 kg/km
AY-DA0600131 Silicone Single Conductor 15AWG 300*0.08 3.2 mm 13.46 kg/km
AY-A0610015 Silicone Single Conductor 16AWG 252*0.08 3 mm 11.31 kg/km
AY-DA0600084 Silicone Single Conductor 17AWG 200*0.08 2.6 mm 8.97 kg/km
AY-A0610011 Silicone Single Conductor 18AWG 150*0.08 2.3 mm 6.73 kg/km
AY-A0610009 Silicone Single Conductor 20AWG 100*0.08 1.8 mm 4.49 kg/km
AY-A0610007 Silicone Single Conductor 22AWG 60*0.08 1.7 mm 2.69 kg/km
AY-A0610005 Silicone Single Conductor 24AWG 40*0.08 1.6 mm 1.79 kg/km
AY-A0600116 Silicone Single Conductor 26AWG 30*0.08 1.5 mm 1.35 kg/km
AY-A0600099 Silicone Single Conductor 28AWG 16*0.08 1.2 mm 0.72 kg/km
AY-A0600127 Silicone Single Conductor 50 mm² 10000*0.08 13.4 mm 448.64 kg/km
AY-DA0600128 Silicone Single Conductor 70 mm² 14000*0.08 17 mm 628.1 kg/km
AY-W0600003 Silicone Single Conductor 90mm² 18000*0.08 18 mm 807.56 kg/km

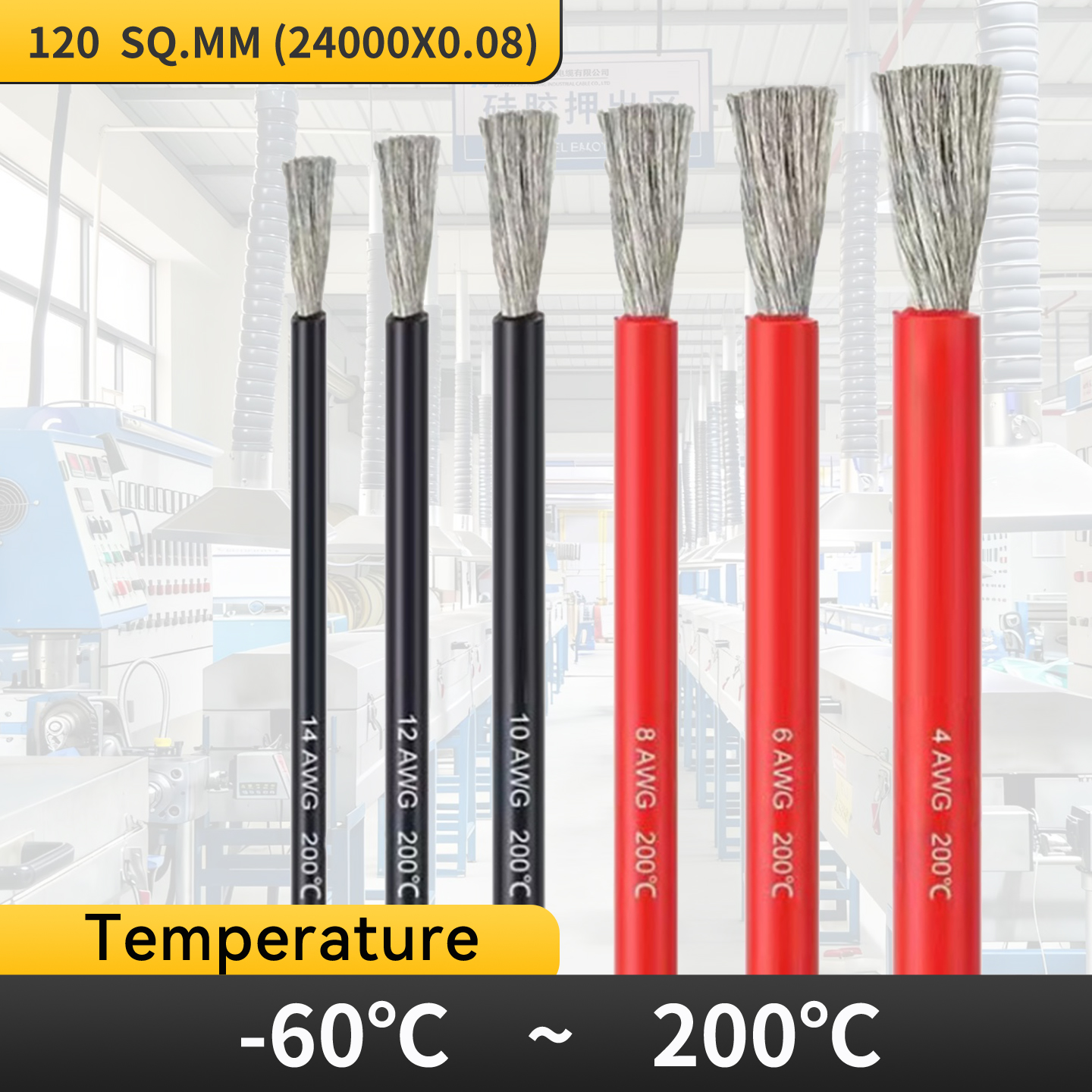

AY-W0600002 Silicone Single Conductor 120mm² 24000*0.08 21 mm 1076.74 kg/km
AY-A06100301 3135 Silicone Single Conductor 12AWG 65*0.254 3.95 mm 29.4 kg/km
AY-A06100302 3135 Silicone Single Conductor 14AWG 41*0.254 3.45 mm 18.54 kg/km
AY-A06100303 3135 Silicone Single Conductor 16AWG 26*0.254 3.05 mm 11.76 kg/km
AY-A06100304 3135 Silicone Single Conductor 18AWG 34*0.18 2.75 mm 7.72 kg/km
AY-A06100305 3135 Silicone Single Conductor 20AWG 21*0.18 2.5 mm 4.77 kg/km
AY-A06100306 3135 Silicone Single Conductor 22AWG 17*0.16 2.3 mm 3.05 kg/km
AY-A06100307 3135 Silicone Single Conductor 24AWG 11*0.16 2.2 mm 1.97 kg/km
AY-A06100308 3135 Silicone Single Conductor 26AWG 7*0.16 2.05 mm 1.26 kg/km
AY-A06100309 3132 Silicone Single Conductor 16AWG 26*0.254 2.3 mm 11.76 kg/km
AY-A06100310 3132 Silicone Single Conductor 18AWG 34*0.18 2 mm 7.72 kg/km
AY-A06100311 3132 Silicone Single Conductor 20AWG 21*0.18 1.75 mm 4.77 kg/km
AY-A06100312 3132 Silicone Single Conductor 22AWG 17*0.16 1.55 mm 3.05 kg/km
AY-A06100313 3132 Silicone Single Conductor 24AWG 11*0.16 1.4 mm 1.97 kg/km
AY-A06100314 3132 Silicone Single Conductor 26AWG 7*0.16 1.25 mm 1.26 kg/km
AY-A06100315 3239 Silicone Single Conductor 12AWG 65*0.254 3.5 mm 29.4 kg/km
AY-A06100316 3239 Silicone Single Conductor 14AWG 41*0.254 2.9 mm 18.54 kg/km
AY-A06100317 3239 Silicone Single Conductor 16AWG 26*0.254 2.5 mm 11.76 kg/km
AY-A06100318 3239 Silicone Single Conductor 18AWG 34*0.18 2.2 mm 15.44 kg/km
AY-A06100319 3239 Silicone Single Conductor 20AWG 21*0.18 1.9 mm 14.31 kg/km
AY-A06100320 3239 Silicone Single Conductor 22AWG 17*0.16 1.75 mm 12.2 kg/km
AY-A06100321 3239 Silicone Single Conductor 24AWG 11*0.16 1.6 mm 9.87 kg/km
AY-A06100322 3239 Silicone Single Conductor 26AWG 7*0.16 1.5 mm 7.54 kg/km
